How to recover lost files ( Linux, Windows, MacOs, Dos, Sun Solaris etc...)

How to recover lost files ( Linux, Windows, MacOs, Dos, Sun Solaris etc...)
Every single person who is using PC(Personal Computer) are doing some work like monitoring, programming or stores etc. that saves it in hard disk. The hard disk can store any type of data like images, text, multimedia etc. Some times user may delete data accidentally but they need it later on. In these kind of situations, recovery softwares come into play.
The loss data occurs not only by deleting but there are several reasons, and one of them is Hard driver corrupt. In Windows Operating System, we can recover the deleted data by using some useful software tools but this procedure is not possible in Linux.
Computer’s data is not completely deleted from hard drive. It remains somewhere in some form for some time unless the user stores more data by filling up the space. The user can easily recover data by using some powerful tools. In Linux, if the user is going to use any tool for recovery like PhotoRec, TestDisk, these requires a small idea for the user about how the file deletion occured? or when the file is deleted? etc.,
TestDisk can recover lost partitions of any file system. PhotoRec is a file data recovery software designed to recover lot of files including video, documents and archives from Hard Disks and lost pictures from digital camera memory(thus, its ‘Photo Recovery’). PhotoRec ignores the filesystem and goes after the underlying data, so it still works even if users media filesystem has been severely damaged or re-formatted.

Both PhotoRec and TestDisk were DOS, Windows(9x,NT,2000,XP,2003), Linux, FreeBSD, NetBSD, OpenBSD, Sun Solaris and MAC OS X compatible. It can be compiled and run on most Linux systems.

PhotoRec Step By Step


This Recovery example guides you through PhotoRec step by step to recover deleted files or lost data from a reformatted partition or corrupted file system. For lost/deleted partitions or deleted files from a FAT or NTFS file system, try TestDisk first - it's usually faster and TestDisk can retrieved the original file names

Run PhotoRec executable

If PhotoRec is not yet installed, it can be downloaded from TestDisk Download. Extract the files from the archive including the sub-directories.
To recover files from hard disk, USB key, Smart Card, CD-ROM, DVD, etc., you need enough rights to access the physical device.
  • dos.png Under DOS, run photorec.exe
  • win.png Under Windows, start PhotoRec (ie testdisk-6.9/win/photorec_win.exe) from an account in the Administrator group. Under Vista, right click photorec_win.exe and then click Run as administrator to launch PhotoRec.
  • linux.png Under Unix/Linux/BSD, you need to be root to run PhotoRec (ie. sudo testdisk-6.9/linux/photorec_static)
  • macosx.png Under MacOSX, start PhotoRec (ie testdisk-6.9/darwin/photorec). If you are not root, PhotoRec will restart itself using sudo after a confirmation on your part. Sudo will ask for a password - enter your Mac OS X user password.
  • os2.png Under OS/2, PhotoRec doesn't handle physical device, only disk images. Sorry.
To recover files from a media image, run
  • photorec image.dd to carve a raw disk image
  • photorec image.E01 to recover files from an Encase EWF image
  • photorec 'image.???' if the Encase image is split into several files.
  • photorec '/cygdrive/d/evidence/image.???' if the Encase image is split into several files in the directory d:\evidence
linux.png macosx.png Most devices should be autodetected including Linux software RAID (ie. /dev/md0) and file system encrypted with cryptsetup, dm-crypt, LUKS or TrueCrypt (ie./dev/mapper/truecrypt0). To recover files from other devices, run photorec device.
Forensics users can use the parameter /log to create a log file named photorec.log; it records the location of the files recovered by PhotoRec.

Disk selection

PhotoRec startup.png
Available media are listed. Use up/down arrow keys to select the disk that holds the lost files. Press Enter to proceed.

macosx.png If available, use raw device /dev/rdisk* instead of /dev/disk* for faster data transfer.

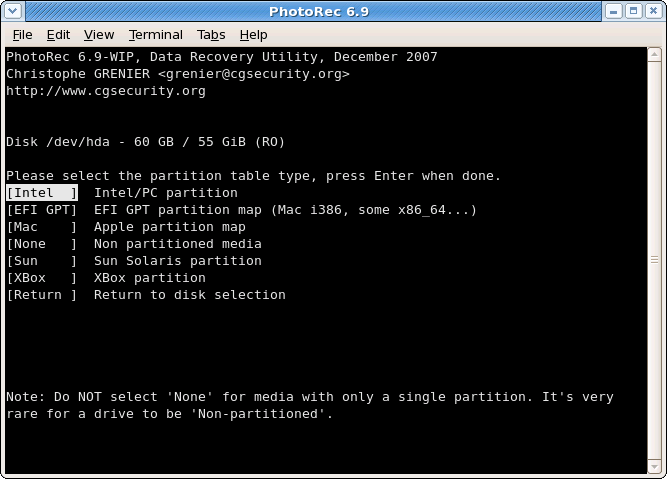

Partition table type selection

PhotoRec part type.png
Select the partition table type - usually the default value is the correct one as PhotoRec auto-detects the partition table type.

Source partition selection

PhotoRec src.png
Choose
  • Search after selecting the partition that holds the lost files to start the recovery,
  • Options to modify the options,
  • File Opt to modify the list of file types recovered by PhotoRec.

PhotoRec options

PhotoRec options.png
  • Paranoid By default, recovered files are verified and invalid files rejected.
Enable bruteforce if you want to recover more fragmented JPEG files, note it's a very CPU intensive operation.
  • Allow partial last cylinder modifies how the disk geometry is determined - only non-partitioned media should be affected.
  • The expert mode option allows the user to force the file system block size and the offset.
  • Enable Keep corrupted files to keep files even if they are invalid in the hope that data may still be salvaged from an invalid file using other tools.
  • Enable Low memory if your system doesn't have enough memory and crashes during recovery. It may be needed for large file systems that are heavily fragmented. Don't use this option unless absolutely necessary.

Selection of files to recover

PhotoRec files.png
In FileOpts, enable or disable the recovery of certain file types, e.g.
[X] riff RIFF audio/video: wav, cdr, avi
...
[X] tif  Tag Image File Format and some raw file formats (pef/nef/dcr/sr2/cr2)
...
[X] zip  zip archive including OpenOffice and MSOffice 2007
The whole list of file formats recovered by PhotoRec contains more than 320 file families representing more than 200 file extensions.

File system type

PhotoRec filesystem.png
Once a partition has been selected and validated with Search, PhotoRec needs to know how the data blocks are allocated. Unless it's ext2/ext3 filesystem, choose Other.

Carve the partition or unallocated space only

PhotoRec free.png
PhotoRec can search files from
  • from the whole partition (useful if the filesystem is corrupted) or
  • from the unallocated space only (available for ext2/ext3/ext4, FAT12/FAT16/FAT32 and NTFS). With this option only deleted files are recovered.

Select where recovered files should be written

PhotoRec dst.png
Choose the directory where the recovered files should be written.
  • dos.png win.png os2.png To get the drive list (C:, D:, E:, etc.), use the arrow keys to select .., press the Enter key - repeat until you can select the drive of your choice. Validate with Yes when you get the expected destination.
  • linux.png File system from external disk may be available in a /media or /mnt sub-directory.
  • macosx.png Partitions from external disk are usually mounted in /Volumes.

Recovery in progress

PhotoRec running.png
Number of recovered files is updated in real time.
  • During pass 0, PhotoRec searches the first 10 files to determine the blocksize.
  • During pass 1 and later, files are recovered including some fragmented files.
Recovered files are written in recup_dir.1, recup_dir.2... sub-directories. It's possible to access the files even if the recovery is not finished.

Recovery is completed

PhotoRec end.png
When the recovery is complete, a summary is displayed. Note that if you interrupt the recovery, the next time PhotoRec is restarted you will be asked to resume the recovery.
